Processors |
Intel Xeon Bronze
Processor family |
|
Memory |
Up to 64GB memory |
|
Form factor |
2U Rack-mount system |
|
File access protocols |
CIFS, NFS, FTP,
SMB3.0, SMB Direct (RDMA) |
|
Block access protocols |
Microsoft iSCSI target |
|
Operating system |
Microsoft Windows
Storage Server 2016 Standard Edition |
|
Number of drives |
Up to 12 3.5” HDDs in
front bay and 4 3.5” HDDs in mid bay for data; two 2.5”
drives for the operating system Up to 192TB raw capacity when using
12TB NL-SAS drives |
|
Drive types |
SATA, NL-SAS or SAS
drive options |
|
External Raid |
PERC
H840 (optional) |
|
Internal RAID options |
Standard options: OS
HDDs (on rear 2.5” HDDs) is always
RAID1. Data HDDs can be configured from
factory in RAID5 or RAID6
(minimum 4 HDDs) PERC H730 (internal
drives) |
|
Power |
Platinum efficiency
495W, 750W or Platinum+ efficiency 1100W power supplies, auto-ranging power
supplies |
|
Availability |
Hot-plug hard drives,
hot-plug power |
|
Management |
Dell Open Manage
Essentials, iDRAC9 Enterprise |
|
Data protection features |
Replication (DFS-R),
Snapshots (VSS) |
|
Rack support |
Sliding ReadyRails
II for 4-post rack, static; ReadyRails for 4-post and 2-post racks |
|
Slots |
Four PCIe 3.0 slots
(four with x8 bandwidth) |

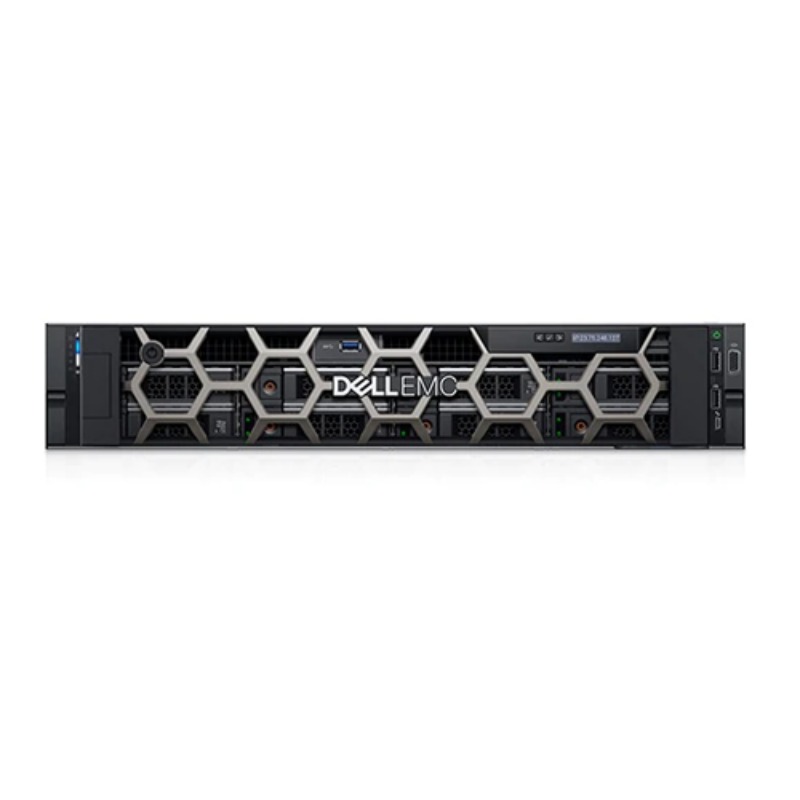

New Dell EMC NX3240 with 1 x Intel® Xeon® Bronze 3204 Processor (1.9G/6C/8.25MB Cache/85W) |1 x 16GB RAM |1 x 2TB 7.2K RPM SATA 6Gbps 512n 3.5in Internal Hard Drive | Inbuilt Raid Controller |iDRAC9, Enterprise | No Trusted Platform Module| Ready Rails Sliding Rails With Cable Management Arm|Dual, Hot-plug, Redundant Power Supply (1+1), 750W |3 Years ProSupport: Next Business Day Onsite Service.
