New Dell PowerVault MD1420 Direct-Attached Storage

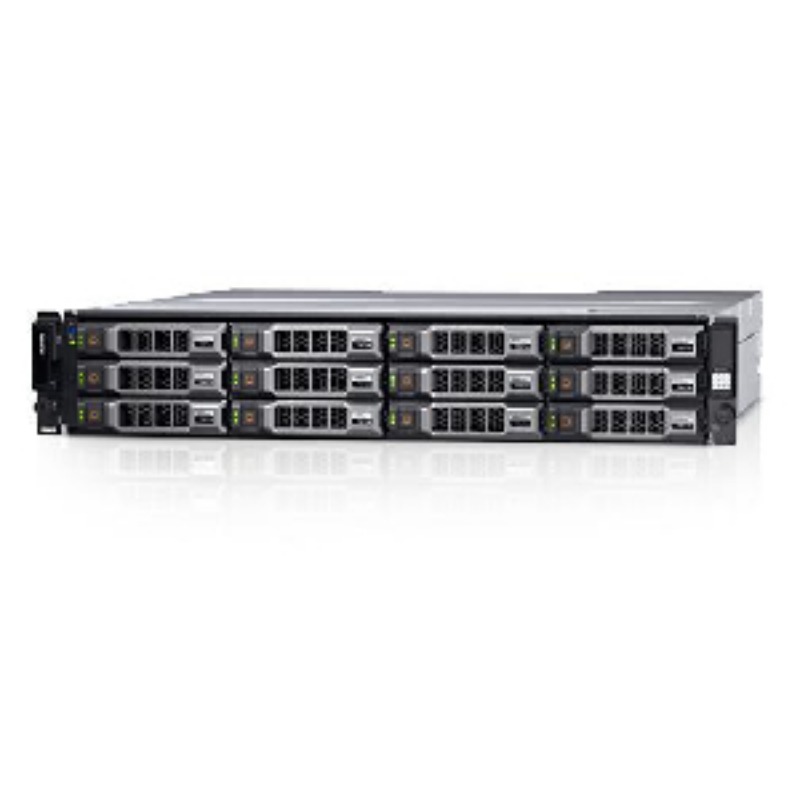

Description: New Dell Storage MD1400, 12 HDs 3.5", Rack mount, 2Us | Dell EMC Bezel MD1400, 2U, 12 Drives | Enclosure Management Module, Dual | Hard Drive Blank Filler 3.5 | 2 x 2TB 7.2K RPM NLSAS 512n 3.5in Hot-plug Hard Drive |Regulatory Label, APCC, MD1400 |Power Supply, 600W, Redundant |Jumper Cord - C13/C14, 2M, 250V, 10A | 3 Years Pro-Support Plus: NBD Onsite Service.

Feature

MD1400

MD1420

Drives

Up to 12 hot-pluggable 3.5” or 2.5” drives (2.5”available with adapter)

Up to 24 hot-pluggable 2.5” drives

Drive performance and capacities

3.5” and 2.5” NL-SAS, 2.5” SAS and 2.5” SSD drives

2.5” NL-SAS, SAS and SSD drives

Maximum capacity per enclosure

Up to 168TB when using 12 x 14TB NL-SAS 3.5” HDDs

Up to 57.6TB when using 24 x 2.4TB NL-SAS 2.5” HDDs

Expansion capabilities

PERC H830/H840 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual -port, 4 ports per enclosure

Host connectivity

Unified mode

Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H830/H840 (4 enclosures per port, single path) Unified mode (recommended redundant path) for daisy chaining up to 4 enclosures per PERC H830 (4 enclosures connected to both ports via redundant path cabling)

Enclosure management modules (EMM) and RAID levels

EMM

2 EMM provide redundant enclosure management capability

RAID levels

0, 1, 5, 6, 10, 50, 60

Back-panel connectors per EMM

Connectivity

4 mini-SAS HD connector for connection to the host or expansion

Service management

USB mini-B connector (for factory use only)

Power supplies per PSU

Wattage - AC and DC power

AC - 600W; DC - 700W

Host heat dissipation

AC - 2047BTU/hr.; DC - 2388BTU/hr.

Input voltage range

100-240V AC, auto-sensing; 48V DC

Frequency range

50/60Hz

Amperage

8.6A at 100V, 4.3A at 240V

Available hard drive power (per slot)

Supported continuous consumption

Up to 1.2A at +5V Up to 0.5A at +12V

Physical

Rack support

Dell ReadyRails  II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks

New Dell Storage MD1400, 12 HDs 3.5", Rack mount, 2Us | Dell EMC Bezel MD1400, 2U, 12 Drives | Enclosure Management Module, Dual | Hard Drive Blank Filler 3.5 | 2 x 2TB 7.2K RPM NLSAS 512n 3.5in Hot-plug Hard Drive |Regulatory Label, APCC, MD1400 |Power Supply, 600W, Redundant |Jumper Cord - C13/C14, 2M, 250V, 10A | 3 Years Pro-Support Plus: NBD Onsite Service.
