Feature |
MD1400 |
MD1420 |
Drives |
Up
to 12 hot-pluggable 3.5” or 2.5” drives (2.5”available with adapter) |
Up
to 24 hot-pluggable 2.5” drives |
Drive
performance and capacities |
3.5”
and 2.5” NL-SAS, 2.5” SAS and 2.5” SSD drives |
2.5”
NL-SAS, SAS and SSD drives |
Maximum
capacity per enclosure |
Up
to 168TB when using 12 x 14TB NL-SAS 3.5” HDDs |
Up
to 57.6TB when using 24 x 2.4TB NL-SAS 2.5” HDDs |
Expansion
capabilities |
PERC
H830/H840 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual
-port, 4 ports per enclosure |
|
Host
connectivity |
||
Unified
mode |
Unified
mode (single path) for daisy chaining of up to 8 enclosures per PERC
H830/H840 (4 enclosures per port, single path) Unified mode (recommended
redundant path) for daisy chaining up to 4 enclosures per PERC H830 (4
enclosures connected to both ports via redundant path cabling) |
|
Enclosure
management modules (EMM) and RAID levels |
||
EMM |
2
EMM provide redundant enclosure management capability |
|
RAID
levels |
0,
1, 5, 6, 10, 50, 60 |
|
Back-panel
connectors per EMM |
||
Connectivity |
4
mini-SAS HD connector for connection to the host or expansion |
|
Service
management |
USB
mini-B connector (for factory use only) |
|
Power
supplies per PSU |
||
Wattage
- AC and DC power |
AC
- 600W; DC - 700W |
|
Host
heat dissipation |
AC
- 2047BTU/hr.; DC - 2388BTU/hr. |
|
Input
voltage range |
100-240V
AC, auto-sensing; 48V DC |
|
Frequency
range |
50/60Hz |
|
Amperage |
8.6A
at 100V, 4.3A at 240V |
|
Available
hard drive power (per slot) |
||
Supported
continuous consumption |
Up
to 1.2A at +5V Up to 0.5A at +12V |
|
Physical |
||
Rack
support |
Dell
ReadyRails II static rails
for tool-less mounting in 4-post racks with square or unthreaded round holes
or tooled mounting in 4-post threaded-hole racks |

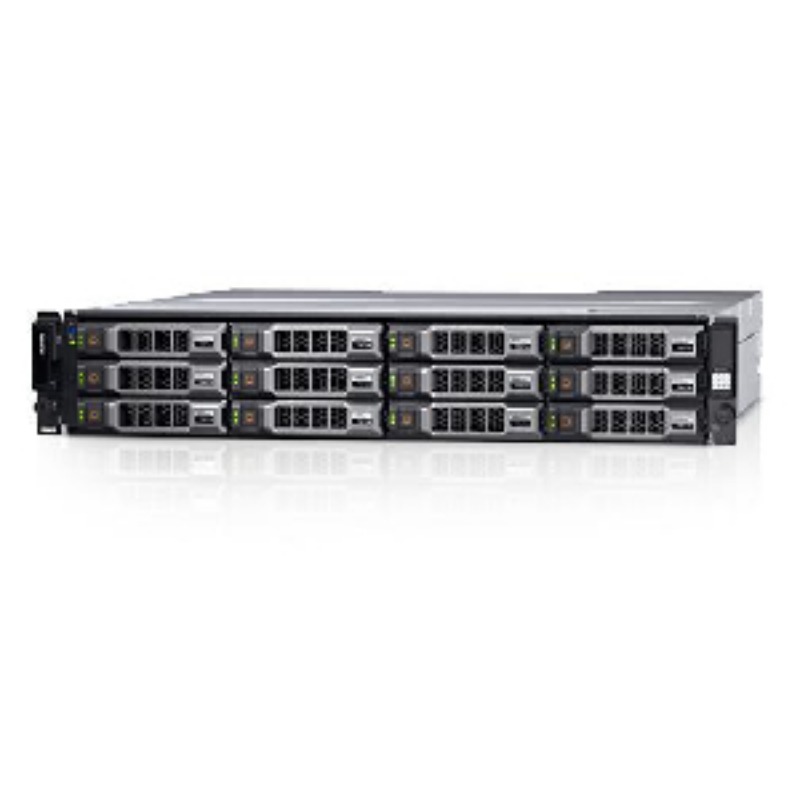

New Dell Storage MD1400, 12 HDDs 3.5", Rack mount, 2Us | Dell EMC Bezel MD1400, 2U, 12 Drives | Enclosure Management Module, Dual | Hard Drive Blank Filler 3.5 | 2 x 2TB 7.2K RPM NLSAS 512n 3.5in Hot-plug Hard Drive |Regulatory Label, APCC, MD1400 |Power Supply, 600W, Redundant |Jumper Cord - C13/C14, 2M, 250V, 10A | 3 Years Pro-Support Plus: NBD Onsite Service.
