Processor: Dual Up to 3rd Generation Intel Xeon Scalable processors with up to 32 cores

Memory: 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s • Supports registered ECC DDR4 DIMMs only

Storage controllers : Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150 • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB • External PERC (RAID): PERC H840, HBA355e

Ports: Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA

Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x Ethernet • 1 x VGA

Internal Ports • 1 x USB 3.0 (optional)

Embedded NIC: 2 x 1 GbE LOM

Drive bays : Front bays: • 0 drive bay • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB

Power supplies: 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant • 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)

Embedded Management: iDRAC9 • iDRAC Service Module • iDRAC Direct • Quick Sync 2 wireless module

OpenManage Software: • OpenManage Enterprise • OpenManage Power Manager Plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin

Operating systems and Hypervisors: • Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi

Warranty: 3 Years Manufacturer Warranty.

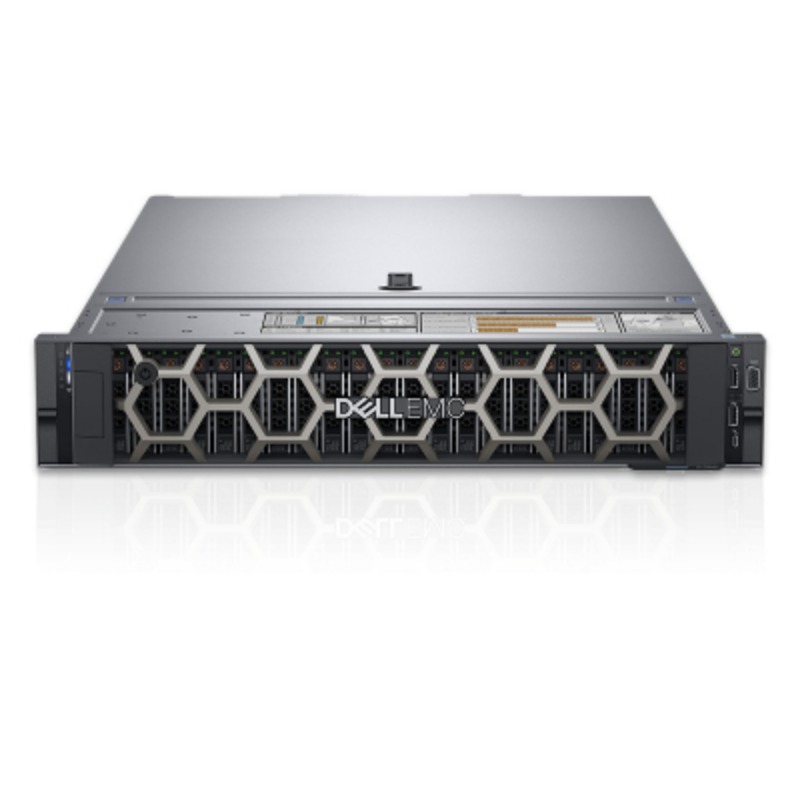

Dell EMC PowerEdge R750xs Server with 1 x Intel® Xeon® Silver 4310T 2.3G, 10C/20T, 10.4GT/s, 15M Cache, Turbo, HT (105W) DDR4-2666 |32GB DDR4 RAM|1 x 600GB 10K RPM SAS 2.5" Hot-plug Hard Drive, 3.5in HYB CARR | Raid Controller - RAID 0, RAID 1,RAID 5 |Inbuilt Power Supply with 3 Years Manufacturer Warranty
