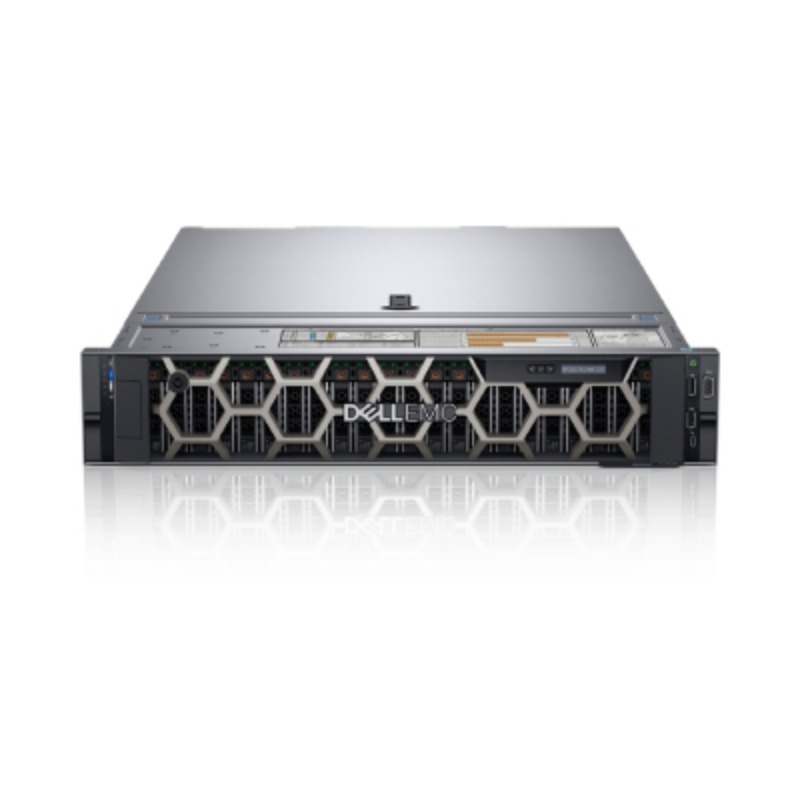

Dell EMC PowerEdge R740 Server

Description: New Dell EMC PowerEdge R740 Server with 1 x 1 x Intel Xeon Silver 4210 2.2G, 10C/20T, 9.6GT/s, 13.75M Cache, Turbo, HT (85W)|32GB DDR4 RAM|1 x 300GB 15K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive, 3.5in HYB CARR |Raid Controller - RAID 0, RAID 1,RAID 5|Inbuilt Power Supply with 3 Years Manufacturer Warranty

Processor: Dual Up to 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor

Memory: 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Up to 12 Intel® Optane™ DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only

Storage controllers: Internal Boot: Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID: S140 Boot Optimized Storage Subsystem (BOSS): HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module1

I/O & Ports: Network daughter card options 4 x 1GbE or 2 x 10GbE + 2 x 1GbE or 4 x 10GbE or 2 x 25GbE Front ports: 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x USB 3.0 (optional), 1 x VGA Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x VGA Video card: 2 x VGA Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots

Drive bays: Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 3.5” SAS/SATA HDD max 128TB Optional DVD-ROM, DVD+RW

Power supplies: Titanium 750W, Platinum 495W, 750W, 750W 240VDC,2 1100W, 1100W 380VDC2 1600W, 2000W and 2400W, Gold 1100W -48VDC

Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy

Embedded Management: iDRAC9, iDRAC Direct, iDRAC RESTful with Redfish, Quick Sync 2 wireless module (optional)

OpenManage™ Software: OpenManage Enterprise

OpenManage Mobile / OpenManage Power Manager

Operating systems: Canonical® Ubuntu® Server LTS/ Citrix® Hypervisor / Microsoft Windows Server® LTSC with Hyper-V / Oracle® Linux / Red Hat® Enterprise Linux / SUSE® Linux Enterprise Server / VMware® ESXi

Warranty: 3 Years Manufacturer Warranty.

New Dell EMC PowerEdge R740 Server with 1 x 1 x Intel Xeon Silver 4210 2.2G, 10C/20T, 9.6GT/s, 13.75M Cache, Turbo, HT (85W)|32GB DDR4 RAM|1 x 300GB 15K RPM SAS 12Gbps 512n 2.5in Hot-plug Hard Drive, 3.5in HYB CARR |Raid Controller - RAID 0, RAID 1,RAID 5|Inbuilt Power Supply with 3 Years Manufacturer Warranty
