Processor: Dual Up to 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor

Memory:  32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 4 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max • Supports registered ECC DDR4 DIMMs only

Storage Controllers:  Internal controllers: PERC H745, HBA355I, S150, H355, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S1): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB • External PERC (RAID): PERC H840, HBA355E

Ports: Front Ports • 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 2.0 • 1 x VGA Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA (optional for liquid cooling configuration)

Internal Ports: 1 x USB 3.0

Embedded NIC: 2 x 1 GbE LOM

Drive bays: Front bays: • Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153 TB • Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.8 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.7 TB

Power supplies: 800 W Platinum AC/240 Mixed Mode • 1100 W Titanium AC/240 Mixed Mode • 1400 W Platinum AC/240 Mixed Mode • 1100 W DC -48 - 60 V

Embedded Management: • iDRAC9 • iDRAC Service Module • iDRAC Direct • Quick Sync 2 wireless module

OpenManage Software: OpenManage Enterprise • OpenManage Power Manager Plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin

Operating systems and Hypervisors: • Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi

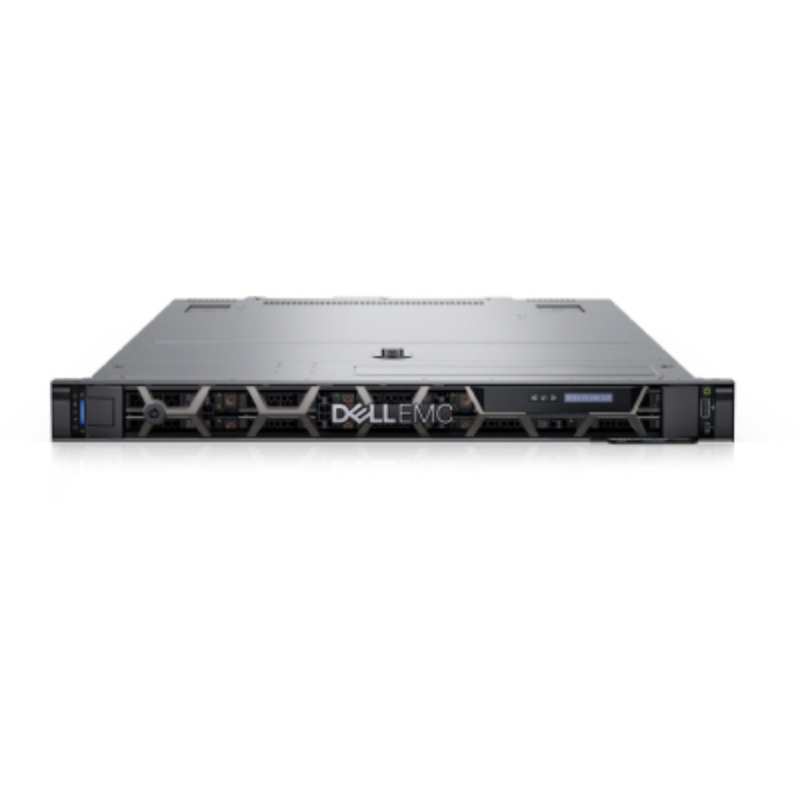

New Dell EMC PowerEdge R650 Server with 1 x Intel® Xeon® Silver 4309Y 2.8G, 8C/16T, 10.4GT/s, 12M Cache, Turbo, HT (105W) DDR4-2666 |1x16 GB RAM|1 x 600GB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug |Raid Controller - RAID 0, RAID 1,RAID 5|Inbuilt Power Supply with 3 Years Manufacturer Warranty
