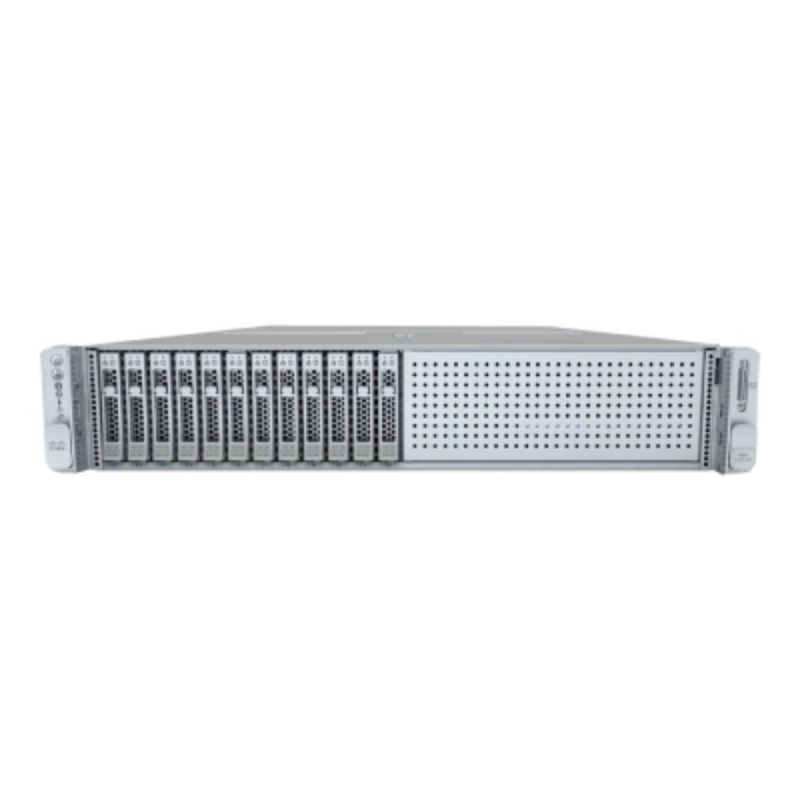

Cisco UCS C240 M6 Rack Server

Description: Cisco UCS C240 M6 Rack Server with 1 x Intel Xeon Silver 4208 / 8 Core processor |1 x 16GB RAM |1 x 600GB 10K RPM SAS HDD | RAID Controller| Inbuilt Power Supply with 3 Years Manufacturer Warranty.

Processor

Upto Dual 3rd Generation Intel Xeon Scalable processors

Memory

32 DDR4 DIMM slots: 16, 32, 64, 128 and 256 GB up to 3200 MHz

PCIe Slots

8 PCIe 4.0 slots plus 1 dedicated 12-Gbps RAID controller slot and 1 dedicated mLOM slot

Hard Drives

·         Up to 28 x 2.5-inch SAS and SATA HDDs and SSDs (up to 4 NVMe PCIe drives)

·         Up to 26 x 2.5-inch NVMe PCIe SSDs (All direct attach Gen4 x4)

·         Up to 16 x 3.5-inch SAS and SATA HDDs and SSDs and optional 2 rear 2.5-inch HDDs and SSDs (up to 4 NVMe PCIe drives)

Embedded Network Interface Cards (NICs)

Dual 10GBASE-T Intel x550 Ethernet ports

RAID controllers

Internal controllers: Cisco 12-Gbps Modular RAID Controller (PCIe 4.0) with 2G Raid controller with 4GB cache for up to 28 SAS/SATA drives. Also a 12G SAS HBA for up to 16 drives (up to 2 HBAs in SX SKU), 4-GB Flash-Backed Write Cache (FBWC), providing enterprise-class data protection for up to 10 SAS and SATA hard disk drives (HDDs), SSDs, or NVMe PCIe SSDs; or Cisco 12-Gbps Modular SAS Host Bus Adapter (HBA)

External controller: Cisco 12-Gbps 9500-8e SAS HBA

Power supplies

Hot-pluggable, redundant 1050W AC, 1050W DC, 1600W AC, and 2300W AC

●  1050 W (AC)

●  1050 W (DC)

●  1600 W (AC)

●  2300 W (AC)

One power supply is mandatory; one more can be added for 1 + 1 redundancy.

Cisco UCS C240 M6 Rack Server with 1 x Intel Xeon Silver 4208 / 8 Core processor |1 x 16GB RAM |1 x 600GB 10K RPM SAS HDD | RAID Controller| Inbuilt Power Supply with 3 Years Manufacturer Warranty.
