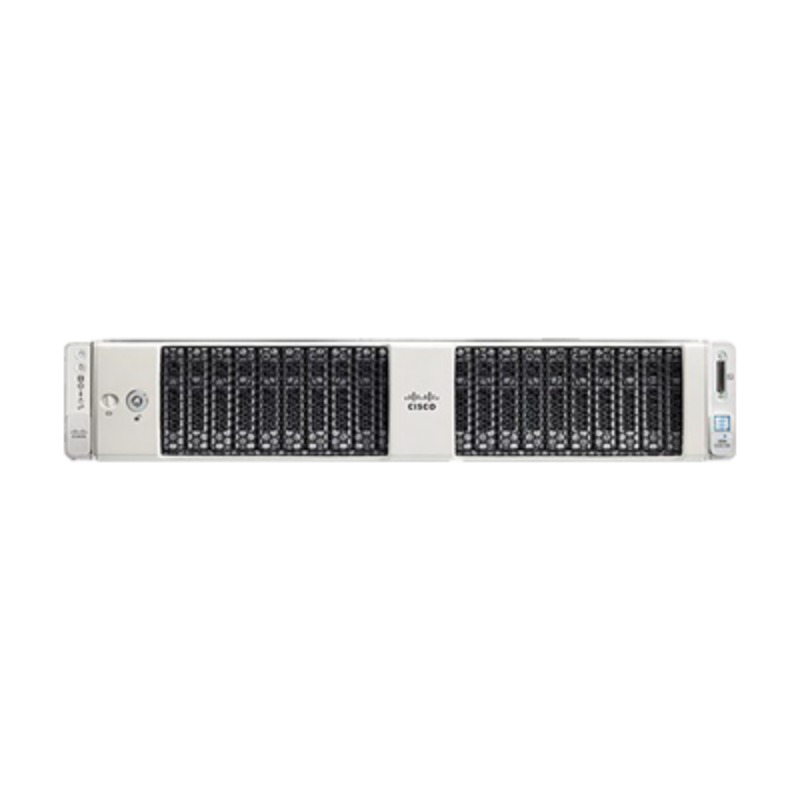

Cisco UCS C240 M5 2U Rack Server

Description: Cisco UCS C240 M5 2U Rack Server with 1 x Intel Xeon Silver 4208 / 8 Core processor |1 x 16GB RAM |1 x 600GB 10K RPM SAS HDD | RAID Controller| Inbuilt Power Supply with 3 Years Manufacturer Warranty.

Processor

Dual Intel Xeon Scalable CPUs with up to 28 cores per socket

Memory

24 DDR4 DIMM slots: 8, 16, 32, 64, and 128 GB up to 2666 MHz

Support for the Intel Optane DC Persistent Memory (128G, 256G, 512G)

PCIe Slots

6 PCIe 3.0 slots plus 1 dedicated 12-Gbps RAID controller slot and 1 dedicated mLOM slot

Hard Drives

●  Up to 26 x 2.5-inch SAS and SATA HDDs and SSDs and up to 4 NVMe PCIe drives

●  Up to 10 x 2.5-inch NVMe PCIe and 16 SAS and SATA HDDs and SSDs

●  Up to 12 x 3.5-inch SAS and SATA HDDs and SSDs, and 2 rear 2.5-inch HDDs and SSDs and up to 4 NVMe PCIe drives

Embedded Network Interface Cards (NICs)

Dual 10GBASE-T Intel x550 Ethernet ports

RAID controllers

·         Internal controllers: Cisco 12-Gbps Modular RAID Controller (PCIe 3.0) with 2- or 4-GB Flash-Backed Write Cache (FBWC), providing enterprise-class data protection for up to 26 SAS and SATA Hard Disk Drives (HDDs), SSDs, or NVMe PCIe SSDs; or Cisco 12-Gbps Modular SAS Host Bus Adapter (HBA)

·         External controller: Cisco 12-Gbps 9400-8e SAS HBA

Power supplies

Hot-pluggable, redundant 770W AC, 1050W AC, 1050W DC, and 1600W AC

Cisco UCS C240 M5 2U Rack Server with 1 x Intel Xeon Silver 4208 / 8 Core processor |1 x 16GB RAM |1 x 600GB 10K RPM SAS HDD | RAID Controller| Inbuilt Power Supply with 3 Years Manufacturer Warranty.
